Ward 26
Staircase and rainscreen cladding design
Main contractorVINCI Interiors
ArchitectIngleton Wood LLP
ClientLewisham and Greenwich NHS Trust
ALM roleRainscreen and staircase enclosure design
What ALM is doing
Designing the rainscreen enclosure around the existing Ward 26 staircase.
ALM is developing the staircase and rainscreen cladding package for VINCI Interiors at Queen Elizabeth Hospital.
The work brings Ingleton Wood's architectural information together with the structural SFS, connections, panel setting-out and system information developed with Ash & Lacy.
ALM scope

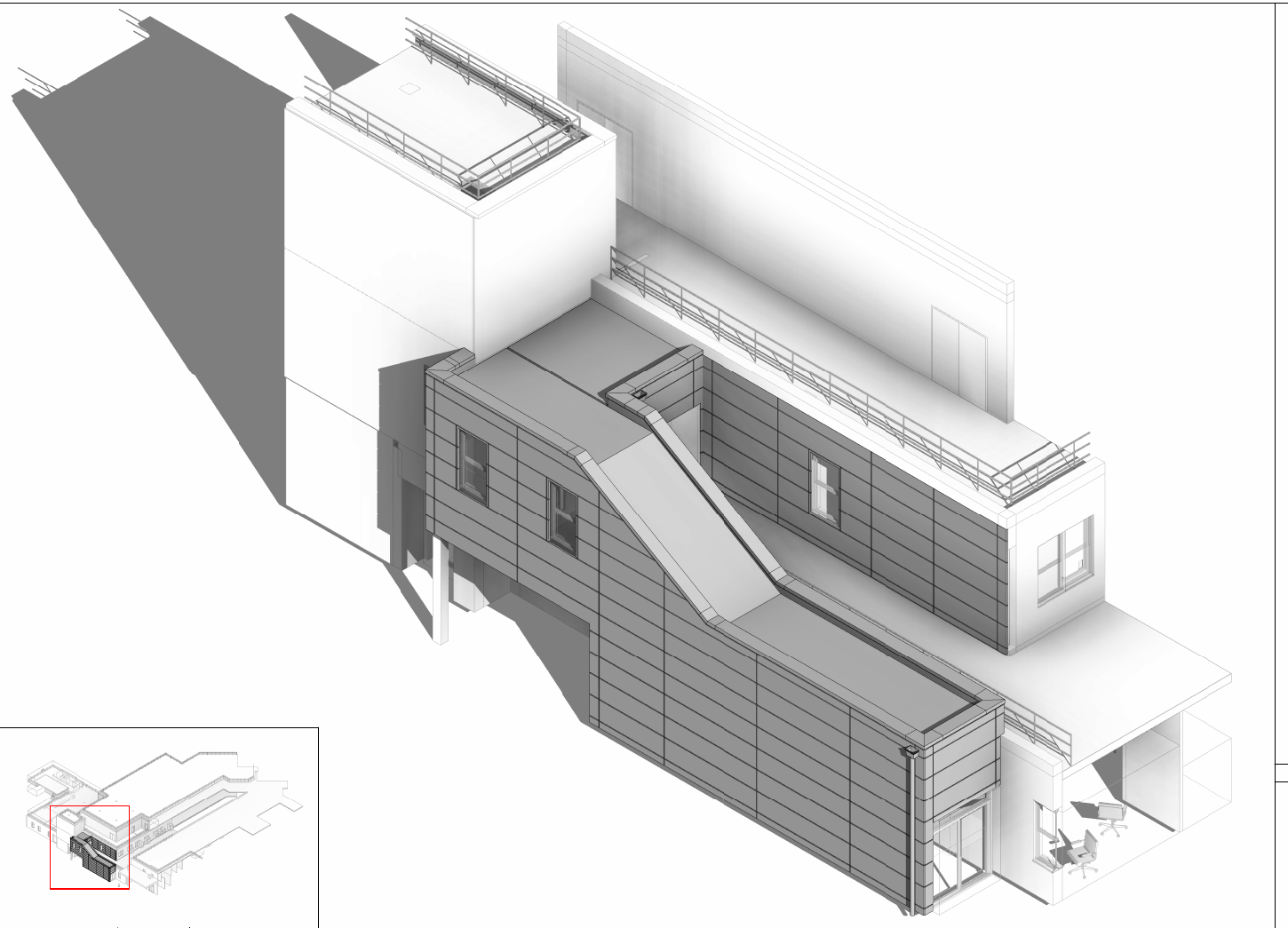

- Area study and envelope geometry
- Panel setting-out and elevations
- Structural SFS and connection coordination
- Details, submittals and controlled issue

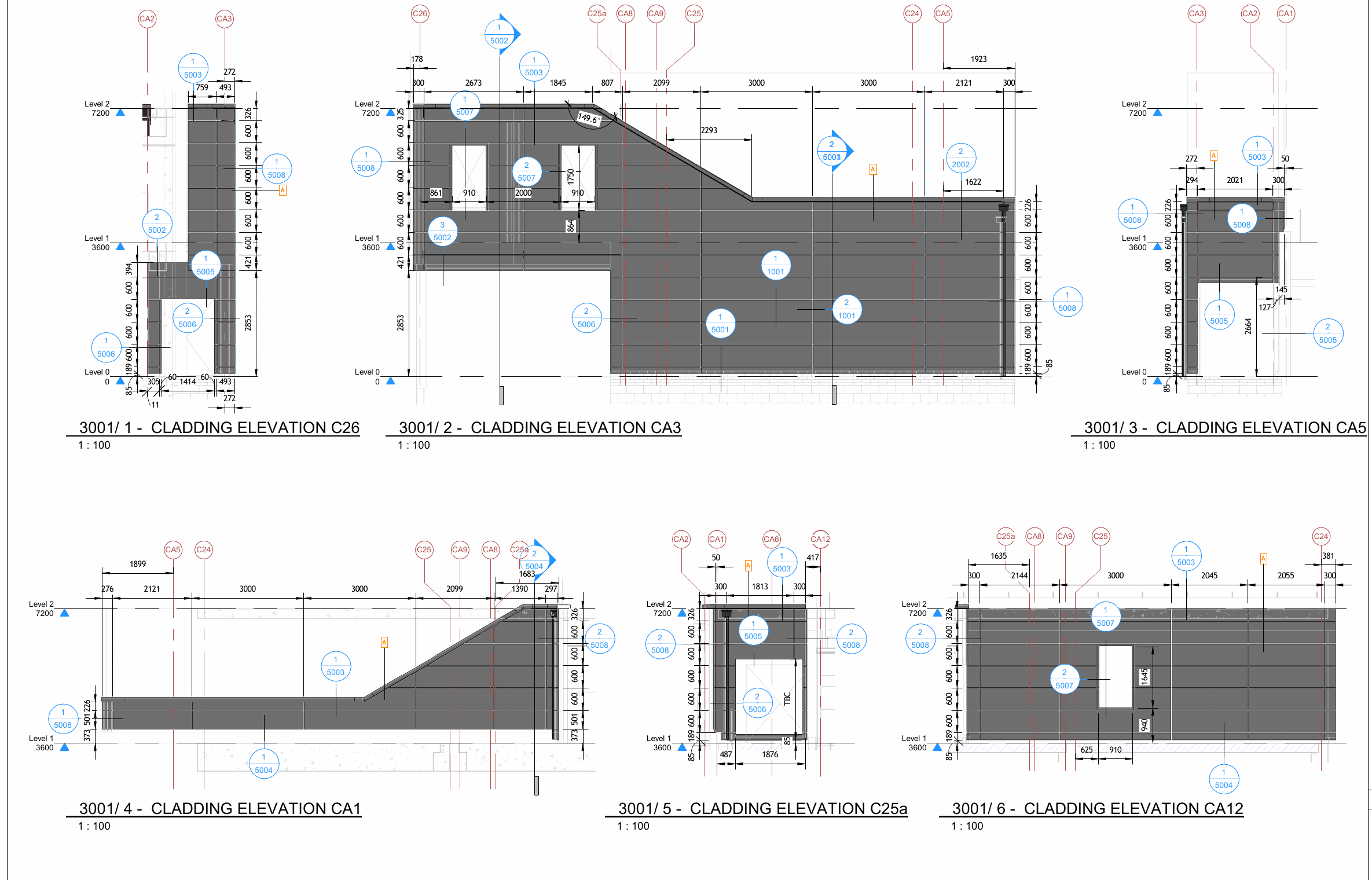

Rainscreen elevations · 3001 · P01
Setting out the complete staircase enclosure.
The elevation set carries panel geometry, openings, levels, interfaces and linked detail references across every face of the Ward 26 staircase.
